    Customized Corrugated Carton Production Line Electric Heating Single Facer Type

    Ask Lasest Price
    Brand Name : JCS
    Model Number : JCS-PL1800
    Certification : CE certificate
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 Sets/Month
    Delivery Time : 20 Days
    • Product Details
    • Company Profile

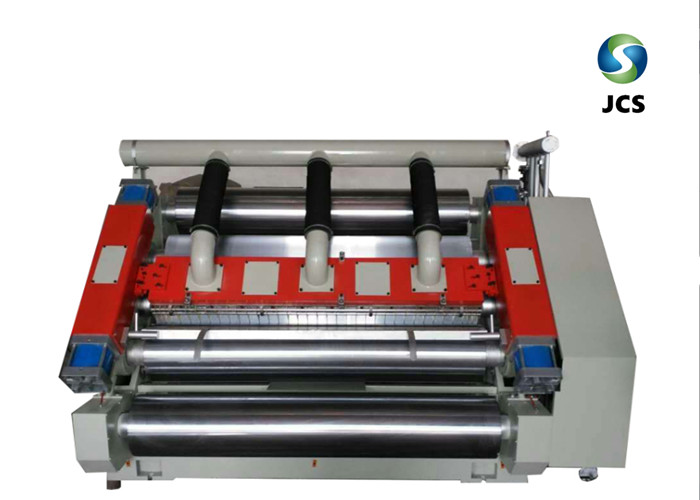

    Customized Corrugated Carton Production Line Electric Heating Single Facer Type

    Corrugated Cardboard Electric Heating Single Facer For Paper Making


    Product Description

    New technology modular structure single facer suitable for high speed production and fully automatic controlled by PLC Computer. used for modern type carton factories and able to connect production management system.


    Charateristics


    1. Designed speed: 100 m/min.

    2. Available width: 1400 mm 1800 mm.

    3. Flute type: A, C, B, E, for option.

    4. Immersed / closed gear box lubricating to reduce noise, universal joint power transmission, to insulate vibration, frequency-changing main motor drive.

    5. Adjustment of upper corrugating roller, pressure roller, and glue roller, is controlled by pneumatic system.

    6. Suction blower type paper delivering with air speed adjusting device, to keep good flute shape under high speed running.

    7. Bearings of upper/lower corrugating roller, and pressure roller, use high-temperature-resist lubrication to keep running smoothly and durably.

    8. Gluing section applies with automatic, self-circulating glue supply.

    9. Upper and lower corrugating machine rollers are made of 48CrMo alloy steel, with heated-treatment for hardness HRC 56-60, and the surface is well treated by grind , board machinery corrugating machine.

    10. Surface treatment of gluing roller: Engrave reticulate and chrome plated .

    11. Corrugated box production machine to make cardboard boxes and automatic carton corrugating machine price single facer are made in good quality.


    Data


    diameter

    Φ280mm



    material


    48CrMo high quality alloy steel, rigidity HRC55°-58°


    processing way


    after quenching and tempering,The surface of upper-lower roller is ground, then plating chrome or tungsten carbide


    control way


    cylinder control Lifting Up-down


    driving way


    frequency motor


    way of transmit cardboard


    vacuum Cover adsorbable style, Height pressure fan with noise deadening device


    way of bearing lubricating


    high temperature grease


    flute type


    (U/V) ACBEF(According to customers requirements)
