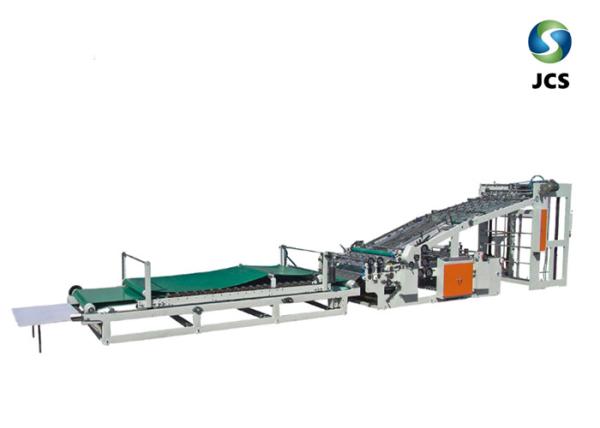

    Flute Automatic Lamination Machine For Corrugated Paper Production Low Noise

    Ask Lasest Price
    Brand Name : JCS
    Model Number : JCS-TM-B1450
    Certification : CE certificate
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50 Sets/Month
    Delivery Time : 20 Working Days
    • Product Details
    • Company Profile

    Flute Automatic Lamination Machine For Corrugated Paper Production Low Noise

    Corrugated Board And Cardboard Paper Automatic Flute laminator machine


    Summarize


    Automatic flute laminating machines is latest designed model with advantages of easy operation, working reliable, convenient maintenance, high speed, low noise and high accuracy. It will provide to customers with more excellent reliable equipments, which help you to gain the competitive power in the market competing.


    Detail


    1. JCS Automatic type B Flute Laminating Machine adopts timing belts imported from Japan,which are constructed with wear resistant and high tensile, thus guarantee the extremely accurate precision of lamination.
    2. Adjustable glue roller system applies evenly on the corrugated paper and achieved gluing action.The recycle gluing system is refilled glue in the slot at both gluing rollers by electric glue controller. The glue system prevents wasting glue

    that makes it efficiency.
    3. The advanced suction belt feeding mechanism of the bottom sheet feeder ensures A,B,C,D,E and F flute, single and double wall corrugated paper to be delivered smoothly even at high speed.

    4. It is most suitable equipment for high grade color print corrugated packaging converting.


    Main Data


    Model

    JCS-TM-B1300

    JCS-TM-B1450

    JCS-TM-B1600

    Maximum size(W×L)

    1300×1100mm

    1450×1100mm

    1600×1400mm

    Minimum size(W×L)

    350×350mm

    350×350mm

    450×450mm

    Laminate precision

    ≤±1.5mm

    ≤±1.5mm

    ≤±1.5mm

    Max Speed

    6000s/min

    6000s/min

    6000s/min

    Total power

    12kw

    12kw

    13kw

    Total length

    12.6m

    12.6m

    15m

    Total weight

    6900kgs

    7350kgs

    8200kgs
