Flute Laminator Machine In Cardboard Or Carton For 3 / 4 / 5 / 7 Layers

Introduction

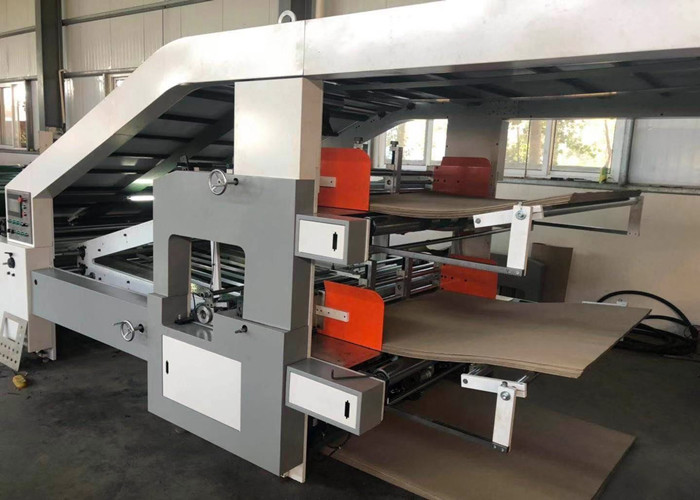

JCS-F series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.

Machine structure

1. Face paper conveying section adopts advanced four sucking and four delivering feeder, with the help of high pressure vacuum pump it can feed the face paper 180-600gsm efficiently. Position displaying hand wheel on the face paper pile loading section makes the loading action more accurate and more convenient for the bottom paper loading at the same time. Limited switch fixed on face paper loading section makes the moving up action more accurate.

2. Conveying belt, pressing roller and automatic chasing lay all do help to the face paper delivery. Pressing roller adopts the specialized roller which is used on print machine, it can delivery both thick and thin paper effectively. Anti-curl structure helps to delivery face paper at the same time.

3. Both bottom paper feeding section adopt vacuum sucking belt with high strength and high friction allowing the non-stop feeding. Rotating paper supporter equipped on this section makes it possible to feed the long sheet.

4. Knurled roller on the bottom feeding part makes sure the stable running when the machine in a high speed.

5. Chasing lay and high-speed axial flow fan differential positioning system is applied on the bottom paper feeding part. You can adjust the front and back position without stopping the machine. Synchronous slot design can control the bottom paper feeding in a minimum range; Chasing lay can make sure a good bottom sheet feeding when the machine is running at a high speed.

    Cangzhou JCS Packaging Machinery Co.,Ltd is transforming into an important role in packaging machinery filed, specialized in manufacturing carton printing machinery and carton packaging machinery.

     Dedicated in this field for nearly 20 years, JCS PACK has established one comprehensive set of industrial chain: technology research & development-machine part processing-machine assembly - advertising & promotion - marketing - after-sale service, and have designed and manufactured machines that apply to the producing for varies cartons.

     JCS PACK has turned into one of the manufacturers who has the most complete series of products, high quality and perfect after-sale service. Meanwhile, our products have been exported to many countries, including Germany, Poland, U.S.A., Canada, Mexico, Brazil, U.A.E., Iran, Turkey, Singapore, Indonesia, India, Thailand, Vietnam, South Africa, Algeria, etc..

     With the purpose of ’Better creativity, better future', JCS PACK keeps continuously development, and wins great praises in the market. Wish we unite in a concerted effort for the beautiful future!
