5 / 9 mm PP Belt Corrugated Box Strapping Machine Semi Automatic Energy Saving

Ask Lasest Price
Brand Name :	JCS
Model Number :	JCS-BZD850
Certification :	CE certificate
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	50 Sets/Month
Delivery Time :	10 Days

Add to Cart

Product Details
Company Profile

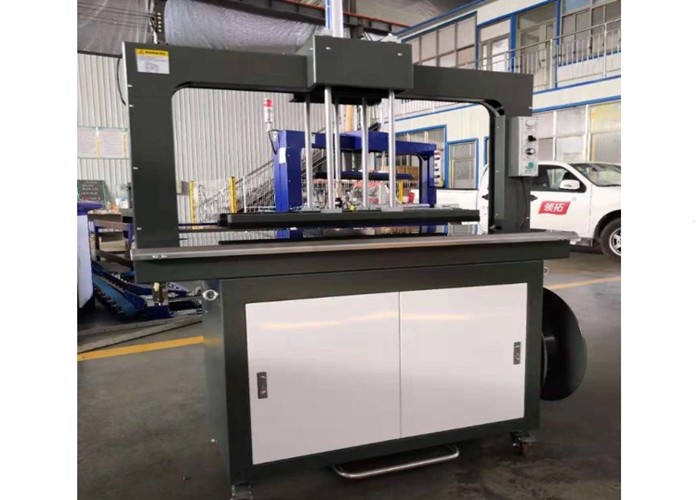

5 / 9 mm PP Belt Corrugated Box Strapping Machine Semi Automatic Energy Saving

Semi Automatic 5 / 9 mm PP Belt Corrugated Box Strapping Machine

Description

1. The corrugated cardboard box binding line is suitable for the finishing and packing of the back of the automatic glue box machine, which has the advantages of saving manpower, saving time and labor.

2. Capacity: 15-20 bales/min (Normal 20 pcs/ bale)

3. Working environment: Relative humidity < or equal 90%. Temperature 0-40 degrees Celsius.Noise < or equal 75dB (A);With of Band: 5mm.

4. Specification of band reel: Inner diameter of band paper core is 200mm-210mm, diameter of band reel 400-450mm, Width of band 175-190mm.

5. Gluing method: heat fusion.

6. Bonding type: bottom bonding, the bonding surface is more or equal 90%, the bonding position deviation is less than or equal to 2mm.

7. Strapping tension strength: 0-45Kg.

8. Air pressure: 0.5-0.8MPa.

9. Roller material: stainless steel.diameter: 50mm.thickness: 1.5mm.

10. Conveying speed: 0-50m/min.

Data

Model	JCS-BZD850
Electrical	1PH,110V/220V,50HZ60HZ
Warm-up time	180s
Strap width	8-19mm(fix)
PP strap paper coil I.D	8’’(200mm)
Strapping speed	2.4s/pcs (25pcs/min)
Arch	aluminum arch
Arch size	W:850×H:600mm
Min. strapping size	W:100×H:30mm
Max. strapping size	W:850×H:585mm
Working table height	814mm
Machine dimension(L×W×H)	1420×633×1520mm
