Brand Name : | JCS |
Model Number : | JCS-ZS-2800 |
Certification : | CE certificate |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 30 Sets/Month |
Delivery Time : | 30 Days |

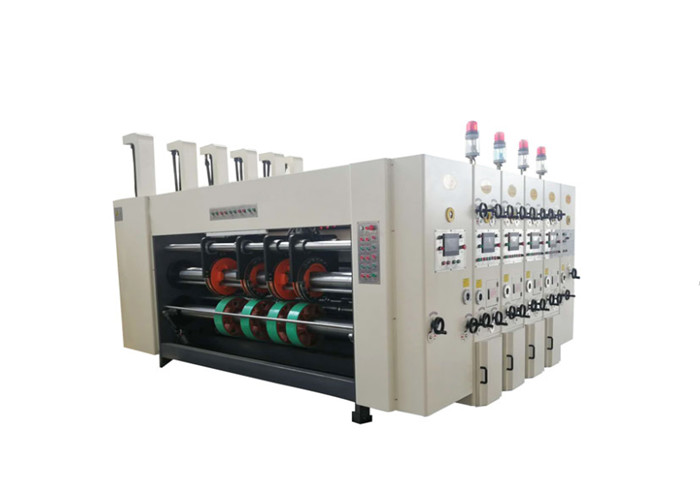

Energy Saving Corrugated Carton Box Printing Electric Slotting
Machine
Features
1. This machine is designed and made to high quality and safety
standard,with the advantages of high speed, auto control and quick
order shift.
2. Auto high quality materials and parts.
3. Well hardened and ground transmission gears, hardness more than
60(HRC).
4. Auto zero return and auto reset.
5. All gaps between cylinders and rollers are computerized and/or
motorized control.
6. Vacuum transfer system used in all printing sections.
7. PLC control system with touch screen control.
Data
Model | 900x2000 | 900x2400 | 1200x2400 | 1600x2800 |
Max Machine Speed(pcs/min) | 160 | 160 | 150 | 150 |
Max Feeding Size(mm) | 880x2000 | 880x2400 | 1180x2400 | 1540x2800 |
Min Feeding Size(mm) | 280x640 | 280x640 | 320x700 | 420x760 |
Skip Feeding(mm) | 1100x2000 | 1100x2400 | 1500x2400 | 1540x2800 |
Max Printing Area(mm) | 800x2000 | 800x2400 | 1150x2400 | 1540x2800 |
Thickness of Printing Plate(mm) | 7.2 | 7.2 | 7.2 | 7.2 |
Min Panel(mm) Slot Type L. | 240x80x240x80 | 240x80x240x80 | 260x90x260x90 | 280x100x280x100 |
Max Slotting Depth(mm) | 250 | 250 | 320 | 560 |
Max Thickness of Sheet(mm) | 8 | 8 | 12 | 12 |
Dimension(LxWxH) | T:11659x4240x3200 | T:11659x4800x3200 | T:13015x4800x3500 | T:14021x5220x3500 |
![]() |
