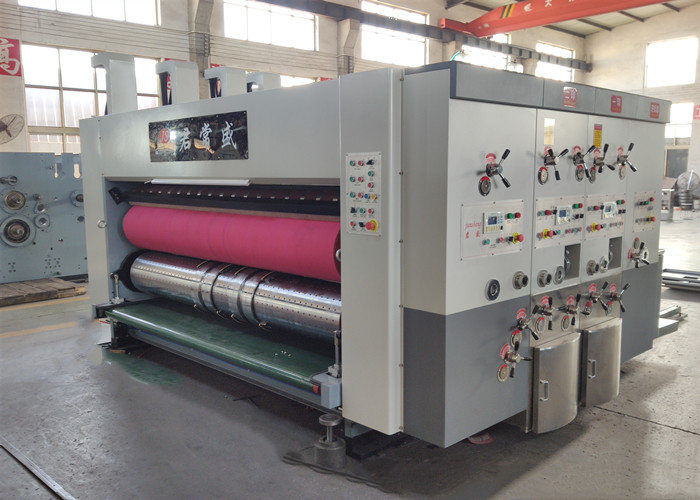

Digital Corrugated Flexo 4 Colors Printing Slotting Rotary Die
Cutting Machine
Summarize
The machine for printing words and images. Modern presses are
usually made up of plates, ink, embossing, and paper feeding
(including folding). The principle of it is to make the printed
text and image printed on the printing press, and then apply the
ink to the printing plate with words and images, and then directly
or indirectly to the paper or other printed materials (such as
textiles, metal plates, plastic, leather, wood, glass, and
ceramics). In order to reproduce the same print as the printing
plate. The invention and development of printing machines play an
important role in the transmission of human civilization and
culture.
Main Feature
High precision bevel gear,adopt 20CrMnTi quality steel, carburizing
quenching, fine grinded gear,transmission gear of high strength,
good wear resistance, low noise, longtime ensure the machine
rotation precision.Lubrication adopt closed type spray lubrication
system, to ensure transmission accuracy and use-life
Detail
Automatic front edge paper feeder (China Brand)
1. Leading edge paper feeder mechanism can reduce the blocking
phenomenon greatly in the process of cardboard feeding.
2. Main motor is controlled by variable frequency converter, power
saving, low noise.
3. Suction fan auxiliary feeding, to ensure smooth into curved
board, air volume can be adjusted according to the size of board on
each section, guarantee the ability of vacuum force, make the
cardboard more accurate.
4. After stop using manual adjustment, baffle, baffle around
electric clearance adjustment.
Printing department(4 groups)
1. Printing roller
1. Outer diameter: Ø408.4(incl. edition),seamless steel pipe, with
surface grinding, hard chrome plating.
2. Printing roller made of high quality steel, with surface
grinding and hard chrome plating.
3. Dynamic balancing correction, stable operation.
4. Automatic locking on adjustment of pressing roller space, adjust
scope is 0-11mm.
2. Anilox roller : Ø216mm(as per customer required)
1. With surface grinding on the steel pipe,pressing checkered,
chrome plating.
2. Dynamic balancing correction, stable operation.
3. Matched with surpass clutch, distribute and clean the ink more
easily.
3. Rubber roller
1. Outer diameter: Ø208mm.
2. Wrapped with wear-resisting rubber on the steel pipe surface.
3. Paper feeding roller adopt auto locking mechanism, scope is
0-11mm.
4 Colors Printing Slotting Rotary Die Cutting Machine.
| Max Machine Speed (pcs/min) | 200 |
| Economic Working Speed (pcs/min) | 150-180 |
| Max Feeding Size (mm) | 1200×2400 |
| Max Printing Size (mm) | 1200×2500 |
| Skip-feeding Size (mm) | 1500×2800 |
| Min Feeding Height (mm) | 280(Low speed, full printing) |
| Standard Plate Thickness (mm) | 7.2 |
| Suitable Cardboard Thickness (mm) | 2 - 11 |
| Main Motor Power (kw) | 24 |
| Total Power (kw) | 50(according to the QTY of unit) |
| Overall Dimensions (mm) L*W*H | 10000×5000×2100
|
