    30 - 60 Pcs / Min Manual Paper Making Machine , Thin Blade Slitter Scorer Corrugated

    Ask Lasest Price
    Brand Name : JCS
    Certification : CE Certification
    Price : Negotiable
    Payment Terms : L/C , T/T
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    30 - 60 Pcs / Min Manual Paper Making Machine , Thin Blade Slitter Scorer Corrugated

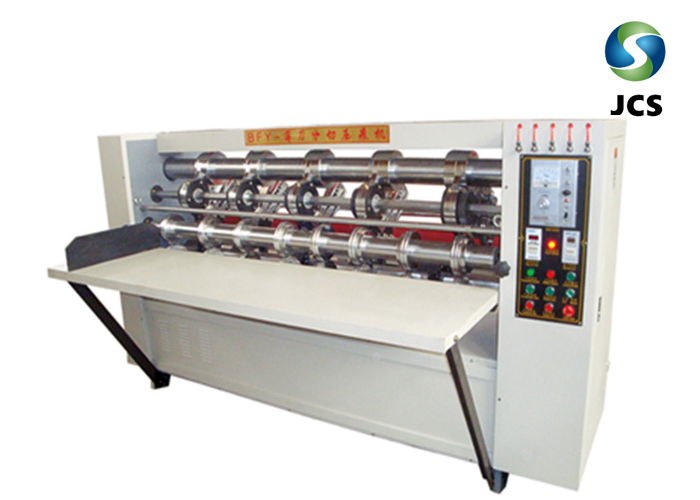

    Thin Blade Slitter Scorer Machine Manual Type Thine Blade Machine


    It is mainly to use in the corrugator or corrugated board production line to slitte and creas the board.

    Brief Introduction:

    Adopt the scheduled pressure paper feeding which is stably.

    Adopt thin knife separate cutting (The thickness is only 1 mm.). To make sure the separate-cut corrugated board smooth and tiny, we installed with automatic and hand grinding wheel grinding to keep the blade edge sharp.

    After pre-pressing, separate cutting and creasing the paperboard to accomplish the requirement of the product. The pressed trace does not arouse the trace tearing phenomenon.

    We can provide the thin knife paper-partitioning machine for transforming the corrugated board producing line.

    Slitting Blade can be added(Optional)


    Spec:

    parameters
    unit
    model
    BFY-2000BFY-2500
    width of the corrugated boardmm20002500
    max. speed of paperboardm/min141141
    slitting bladepieces44
    min. separate cutting widthmm200200
    min. creasing widthmm200200
    external diameter of thin & round knifemm260260
    thickness of thin & round blademm11
    power of electrical machinerykw44
    weight of machinekg30003000

    overall dimension

    mm2630×1791×1130

    3050×1791×1130
