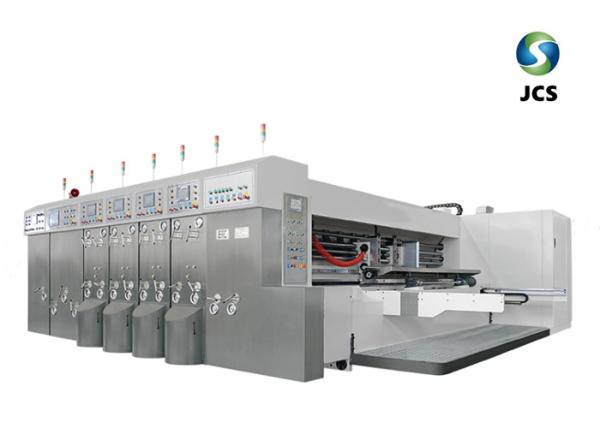

Corrugated Carton Box Energy Saving Printing Electric Rotary Die
Cutting Machine
Features
1. This machine is made in line with European concepts featuring
reliable function and safety, and CE certification is issued.
2. In automatic control system, merely an order of box size
information is input on touch screen, all the cylinders clearances,
axial and circumference data of feeder, printer, slotter and die
cutter will be set automatically featuring accuracy and reliability
without personal interference to realize full automation and
enhance production efficiency.
3. Full auto production control system of CNC (Computer Numerical
Control) stores and quickly changes production orders, featuring
fast order change and simple operation.
4. Imported transmission gears are adopted which are hardened and
ground with > 60o Rockwell hardness.
5. Bearings are imported from Japan.
6. All transmission rollers are made of top quality steel processed
through dynamic/static balance tests, chrome plating and polishing.
7. All the main electric control devices are purchased from
SCHNEIDER France and OMRON Japan and others well-known suppliers.
8. 10 inches HD color touch screen is imported from Schneider
France in clear display and easy operation.
9. Entire machine is equipped with special stainless steel shield
in beautiful appearance, easy cleaning and never rust.
10. Spline free joint ring is applied to reduce central wear and
maintain long-term accurate overprinting.
Feeding unit
1. Wheel lead edge feeder features accurate feeding, little
vibration, long service life and easy maintenance.
2. High feeding accuracy and adaptable blank caliper is between
1.5mm-10mm.
3. Left/right raffles are set electrically and a side squaring
device is installed.
4. Cleaning brushes remove dust on blank surface to improve
printing quality.
5. Upper suction fan removes dust particles on blank to make it
cleaner.
Printing unit
1. Ratchet fixed plate-reeling shaft and full page slot of printing
plate mounting are suitable for easy plate mounting of 10mm plate
hanging strip.
2. Touch screen controls printing cylinder forward or backward
circularly at 360o (frequency inversion and dual speeds).
3. Printing cylinder axial shifting is set electrically on touch
screen at ±10mm setting value in digital indication.
4. The last color printer is added with pre-creasing wheel to
prevent blanks from crushing in the process of creasing.
5. An automatic cleaning device is able to let ink recycled and
cleaning easier and faster.
Die cutting unit
1. The phase and axial settings of die cutting cylinder can be done
on touch screen,which is electrically set and digitally controlled.
2. The setting of diecutter cylinder left and right shifting is
done on touch screen in electrical setting and digital control
within 10mm setting range.
3. Anvil cylinder is made of quality steel through precise
machining, dynamic/static balance tests.
4. Anvil cylinder adopts trimming system to make the covering flat,
even and smooth to improve its life and reduce costs.
5. An interlocking press button is fixed in diecutter to realize
emergent stop, conveying stop and resuming blank feeding.
Data
| Technical Data | 900x2000 | 1200x2000 1200x2400 | 1300x2500 | 1600x2400 1600x2800 |
| Max. Mechanical speed(p/min) | 250 | 200 | 200 | 140 |
| Max. feeding size(mm) | 900x2000 | 1200x2000 1200x2400 | 1300x2500 | 1600x2400 1600x2800 |
| Min. feeding size(mm) | 320x650 | 320x650 | 350x685 | 400x750 |
| Skip feeding size(mm) | 1100x1900 | 1400x1900 1400x2300 | 1500x2400 | 1800x2400 1800x2800 |
| Max. printing area(mm) | 850x1900 | 1200x1900 1200x2300 | 1300x2400 | 1600x2300 1600x2700 |
| Standard plate caliper(mm) | 7.2 | 7.2 | 7.2 | 7.2 |
| Min. slotting distance(mm) | Forward | 160x160x160x160 | 160x160x160x160 | 160x160x160x160 | 160x160x160x160 |
| backward | 250x60x250x60 | 250x60x250x60 | 250x60x250x60 | 250x60x250x60 |
| Max. slotting width | 300 | 400 | 400 | 400 |
