Corrugated Cardboard Box Printing Machine , 4 Color Flexo Printing Machine

Ask Lasest Price
Brand Name :	JCS
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Delivery Time :	10 days

Add to Cart

Product Details
Company Profile

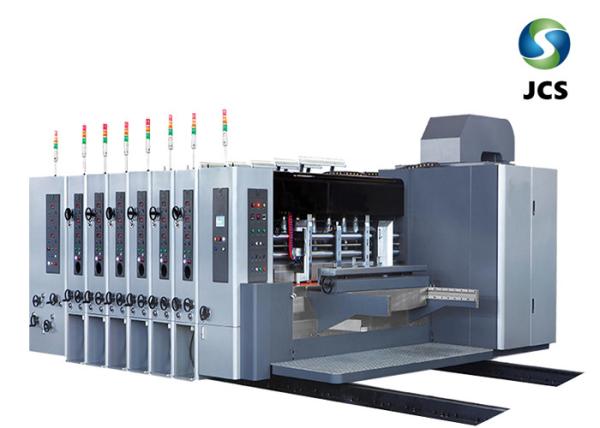

Corrugated Cardboard Box Printing Machine , 4 Color Flexo Printing Machine

Flexo Printing Slotting Rotary Die-Cutting Machine ( Lead Edge Feeding )

Main Features

1. electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers.
2. drive shaft with friction clutch, to avoid misuse and damage to the machine.

3. pneumatic interlock device.
4. the host motor starts the protection device. (the machine is not locked, the host can not start running)

Main Specifications

model	unit	2400	2600	2600	2800
roller diameter	mm	φ 305	φ 405	φ 480	φ 530
max. feeding size	mm	900 * 2300	1200 * 2500	1400 * 2500	1600 * 2300
max. printing area	mm	900 * 2100	1200 * 2300	1400 * 2300	1600 * 2500
feeding paper by partition	mm	950 * 2300	1250 * 2500	1470 * 2500	1650 * 2700
min. feeding size	mm	260 * 650	350 * 650	400 * 650	500 * 650
feeding thickness	mm	2 - 11	2 - 11	2 - 11	2 - 11
print plate thickness	mm	7.2	7.2	7.2	7.2
max. machinery speed	pcs / min	220	200	180	150
economic printing speed	pcs / min	200	180	160	130

Edge- Leader feeding Unit

1. light pressure feeding part : reduce friction between paperboard and the platform

2. vacuum absorption :Help paper board go forward smoothly

Printing Unit

Multi printing with high precision , tolerance is just 0.1mm

this can ake high quality printing on carton box

one colour ,two colour , three colour , four colour , five colour , six colour flexo printing

Colour qty is customized

Slotting Unit

Function : Slotting , edge corner cut , creasing vertical line for corrguated carton box

Computer adjusted for high speed design

Manual adjustaed for common speed design

Die cutting Unit

Function : Make customized carton box shape by wooden mould , such as pizza box .

This part can cut any design box you want
