    Multiple Colors Corrugated Box Printing Machine , Express Box Printing Slotting Machine

    Ask Lasest Price
    Brand Name : JCS
    Model Number : JCS-TB-2000
    Certification : CE certificate
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 Sets/Month
    Delivery Time : 35 Working Days
    • Product Details
    • Company Profile

    Multiple Colors Corrugated Box Printing Machine , Express Box Printing Slotting Machine

    Multiple Colors Corrugated Small Express Box Printing Slotting Machine


    Summarize


    This machine is composed of Auto feeder, printer and electric slotter. Suitable to different shapes of small cartons, can finish in once time, the minimum sheet thickness is 1.5mm, max. Thickness is 8mm.Complete machine configuration: Pneumatic printing plate lifting, pneumatic units locking, electrical phase adjustment, light pressure type auto feeder (self-made) can improve the board anti-pressure ability, reduce the flute damage.


    Parameter

    Machine design speed

    180pcs/min.

    Min. carton height

    50mm

    Economic speed

    160pcs/min.

    Max. carton height

    450mm

    Max. feeding size

    920*2000mm

    Single knife length

    225mm

    Min. feeding size

    210x500mm

    Upper slotter knife size

    60 degree with angle x L153mm

    Skip feeding size

    1125x2000mm

    Max. printing size

    920x1900mm

    30 degree without angle x L72mm

    Wallboard thickness

    40mm

    Wallboard inner width

    2200mm

    Positive slotter knives direction

    L 85 x W85 x H50mm

    Printing roller size

    288x1800mm

    Negative slotter knives direction

    L160 x W60 x H50mm

    Slotting and diecutting precision

    ≤±1.5

    Overprinting precision

    ≤±0.75


    Lead edge feeder unit


    1. Automatic light pressure paper feeding has the proprietary technology,no damage to corrugated line,easy to paper feeding,more precise.(can also choose free pressure as customers requirement.)

    2. Can process hard thinner sheet include 3ply E flute board

    3. Auto feeder with suction device ,can adjust the blast capacity as per different paper curve condition ,ensure smooth feeder paper.


    Printing part


    1. Printing roller

    2. High quality steel plate material, surface grinding and hardness .

    3. Optional: (Full format plate groove, gear fixed test paper plate , for 9mm hanging plate,)

    4. Fast loading and unloading printing plate, foot switch electric control positive and negative.)

    5. Anilox roller and printing roller manual adjustment of gaps dial,adjustment range is 1-8mm.

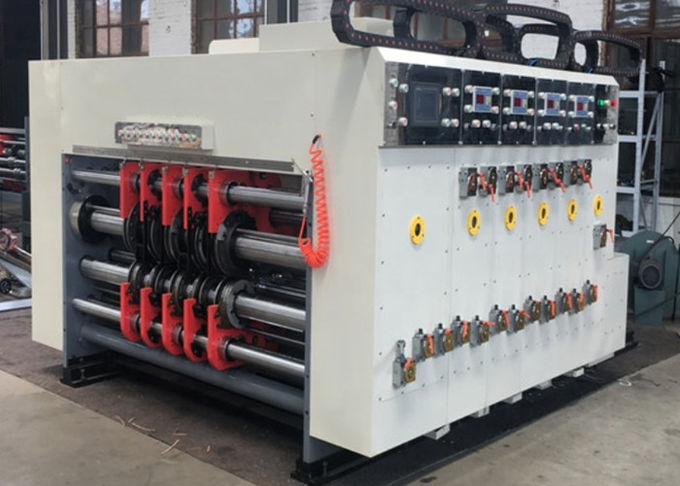

    Slotting unit


    (1) Creasing wheels choose Explosion-proof

    Creasing wheels and the slotting knife holders is adjusted in transverse in synchronization.,6 shaft transverse moving,cutter(5 cutter electrically adjustment),creasing wheel(4 shafts transverse moving),shift fork(copper grinding),Horizontal nut(copper),(PLC touch screen adjustment, importing carton size,auto adjustment).


    (2)Slotting knife adjustment

    1. Slotting knives width is 5mm,can also choose 7mm

    2. Alloy steel with heat treated of the knife tooth,guarantee the hardness and toughness.

    3. Alloy steel with heat treated of the double blade knife tooth,sharp edge high precision.

    4. Creasing wheels and the slotting knife holders is adjusted in transverse in manual,4 shaft transverse moving,carton height electrically adjustment.

    5. Slotting knife manual adjustment of gaps dial ,adjustment range is 1-6mm,adjusted by gear crosshead shoe,when adjustment,drive gear always maintain correct bite status.


    (3)Slotting phase adjustment mechanism

    1. Planet is a gear mechanism

    2. Slotting phase is adjusted by electric digital input type 360, and the machine can be adjusted byrunning or stopping.


    Multiple Colors Corrugated Box Printing Machine , Express Box Printing Slotting Machine
