Brand Name : | JCS |
Model Number : | JCS-KC-S2600 |
Certification : | CE certificate |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 30 Sets/Month |
Delivery Time : | 15 Days |
Chain Type Semi Automatic Feeding Corrugated Cardboard Slotting Machine / RS4
Structure
1. Feeding table adopts chain style manual feeding paper;

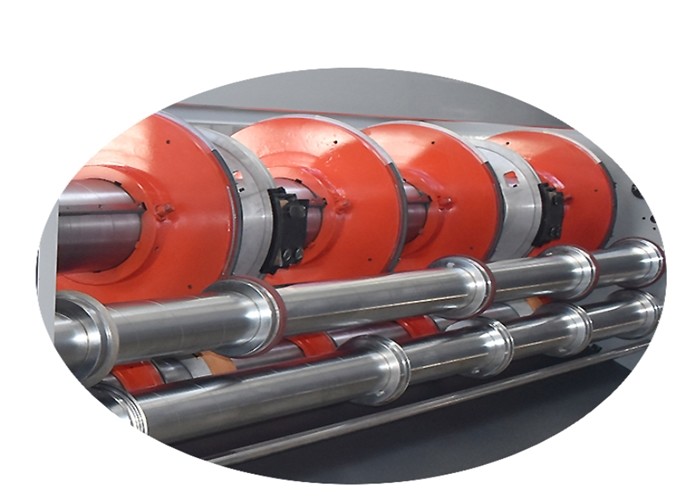

2. Slot blade phase adopts 360 degree positive turn and reverse
turn, blade axes treated. by rigidity chroming electroplate and
nicety grinding ,firmness durable;
3. Transmit gear adopt no clearance cooperation ,debase gear adjust
error;
4. Gear lubricate,adopt spout out style system .prolong gear using
life.
Characteristic
Rotate Type Slotter Machine is complex type production equipment.
It could do corner cutting, rolling curve, side shearing of the
corrugated cardboard. Its main character is that one machine could
have many functions. Compared with using stand-alone machine, it
has many advantages. Such as it could occupy small production area,
adjust conveniently, save labor productive power, smaller machining
error, have stable product quality and so on. This machine's feed
mechanism could realize the instantaneous synchronous with the main
machine. The position standard is reasonable so that it could
ensure the corner cut slot position accurately. The reasonable
design,this machine has compact structure, excellent material,
processing fine. Compared with the domestic similar products ,it
has high efficiency, high quality, stable and reliable, easy to
change adjustment of cutting tool, easy operation and maintenance
etc. It is the ideal processing equipment to the small and medium
carton company.
Data
Model | Unit | φ400 | φ480 | φ535 | φ600 | φ735 |
Max.Speed | Pcs/min | 60 | 60 | 60 | 60 | 60 |
Max Paper Feeding Size | mm | 1200*2600 | 1450*2800 | 1600*2800 | 1800*2800 | 2280*3000 |
Min Paper Feeding Size | mm | 350*600 | 400*600 | 420*600 | 420*600 | 500*700 |
Slotting width*depth | mm | 7*300 | 7*350 | 7*400 | 7*450 | 7*550 |
Phase Adjustment | º | Electric 360 | Electric 360 | Electric 360 | Electric 360 | Electric 360 |
![]() |
