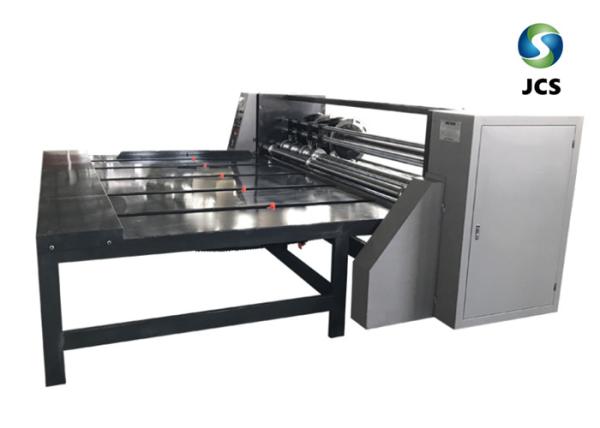

RS4 Carton Box Corrugated Paperboard Semi Automatic Four Link
Slotting Machine
Description
Chain Feed Table Unit
1. Table by a welded steel plate and channel.Table plate
thickness:3.7mm.Channel is China's national standard of 10# channel
steel.
2. Table length 2380mm,4 to 5 groups feed chain.Each chain has
three push feeder.
3. Configuration 2 side cover.Made with 5# angle iron.
4. The forefront of the table with platen spring.Flexographic
printer new multicolor semi-automatic letterpress paper printer
chain machine.
5.Automatic measurement of the number of cardboard.
Slotter Unit
1. Gear enclosed spray lubrication system,keyless drive design,so
that accurate long-term chromatic unchanged.High speed flexo
printing slotting(stacking unit) 3.2 phase institutions is 360
degree electric adjustment,ergonomin design.
2. Four-blade sync adjustment for carton height.
3. Serrated slotted cutter.Thickness:7mm.Cutting angle blade
width:45mm.
Main features
1. 40mm thick wall panels, cast to track.
2. Feed unit 12A using precision roller chains feed, bilateral
specified bit, countertops 5mm thickness.
3. Slotted portion 360 ° NC electric phase, 7mm thick 65 Mn alloy
tool.
4. Slotted portion manually traverse four knives, manually
synchronize transfer box is high.
5. Each unit 360 ° NC electric phase.
6. Automatic counting, the host jog, lighting devices.
7. Automatic spray lubrication.
8. Machine 50mm thick helical gears, Oldham no gap adjustment,
Keyless ring connection.
9. Main Motor: Main motor adopts frequency control motor (Delta
converter).
Machine comes with wearing spare parts
1. The special wrench 1 set
2. a wrench to live
3. 192 Garden knife two round
4. Vulnerability screw
Data
Model | JCS-KC-1425 |
Maximum speed | 60PCS/min |
Notching width | 45mm |
Slot width | 7.5mm |
Maximum feed size | 1400×2400mm |
Maximum groove depth | 300mm |
Minimum feed size | 650×350mm |
Main motor power | 4.0kw |
Weight | 4000kg |
