    Pneumatic Brake Corrugated Paper Making Machine 3kw CE Certification

    Ask Lasest Price
    Brand Name : JCS
    Model Number : JCS-PL-1400
    Certification : CE Certification
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    Pneumatic Brake Corrugated Paper Making Machine 3kw CE Certification

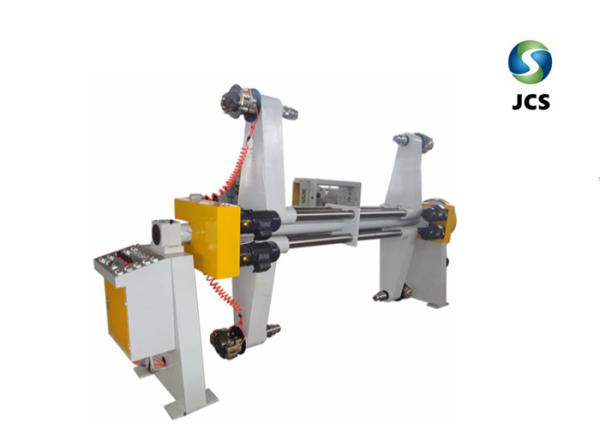

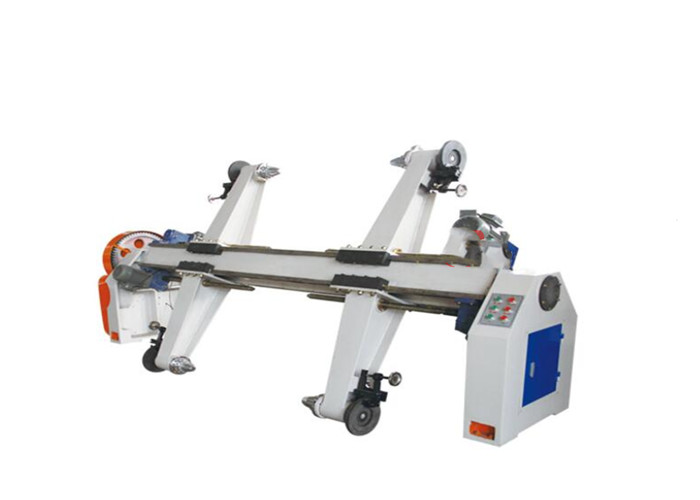

    Corrugated Paper Box Shaft Less Mill Roll Stander Making Machine


    Product Feature


    1. The machine can carry two kraft paper at one time,which can work without brake.
    2. reel paper lift-lower, clamp, loosen, movement, contraposition operated by electric mechanic.feeding kraft / reel paper quickly.
    3. brake: pneumatic brake


    Spec of stand


    1. reel Stand driven by electric
    2. kraft paper range:

    3. pneumatic Source Pressure(Mpa): 0.4---0.8Mpa
    4. power: 380V 50Hz


    Spec of electric motor


    1 . reel Paper Nipping Motor Power: 500W*4pcs

    nominal voltage:380V 50Hz Short Time(S2) Working Type
    2. lifting Motor Woking Power: 1.5KW 380 V 50 Hz


    Data


    max. width

    1600mm

    min. width

    800mm

    diameter

    max. Φ1500mm

    max. weight

    2000Kg(one side)
