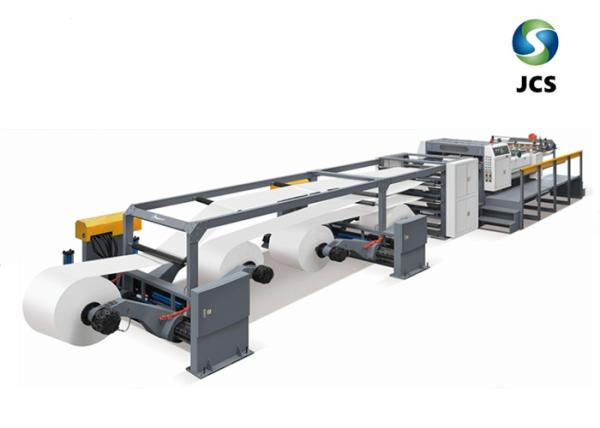

    Safety Corrugated Sheet Cutting Machine High Accuracy Low Labor Intensity

    Ask Lasest Price
    Brand Name : JCS
    Model Number : JCS-SC1100
    Certification : CE certificate
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 20 Set/Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    Safety Corrugated Sheet Cutting Machine High Accuracy Low Labor Intensity

    Automatic Paper Roll To Corrugated Sheet Cutting Machine Made In China


    The paper cutter is a traditional product, which is used to deal with the paper cutting needs of the finished corrugated board in the early stage. From the mechanical paper cutter to the tape controlled paper cutter, it also develops to the cutting system with microcomputer program control, color display, full image operation guidance and visualization processing, computer-aided cutting external programming and editing production data, which makes the production preparation time shorter, cutting accuracy higher, labor intensity lower, and operation safer.


    Data


    PARAMETER

    Model

    CM1100A/CM1400A/CM1700A/CM1900A

    Cutting type

    The up knife cut reciprocally and the down knife is fixed

    Applicable range of paper

    60-550GSM

    Max. paper roll diameter

    1500mm(CM-1100)/1800mm(CM-1400/1700/1900)

    Max. paper-cutting width

    1100mm/1400mm/1700mm/1900mm

    Range of cutting length

    450-1450mm (CM-1100)/450-1600mm (CM-1400/1700/1900)

    Cutting sheet number

    2 sheet

    Cutting precision

    Cutting length 1000mm: ±0.5mm

    Cutting length>1000mm: ±0.1%

    Max. cutting speed

    300 cut/min

    Max. cutting meter speed

    300 m/min

    Max. paper stacking height

    1500mm

    Air pressure source requirement

    0.8Mpa

    Design power

    380V/220V*50HZ

    Gross weight

    9500/10500/12000/14000KGS
