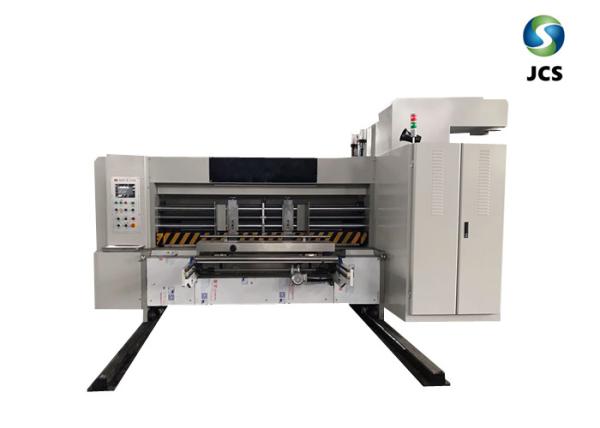

Electric Type Corrugated Board Printing Electric Rotary Die Cutting Machine

Main Features

1. The computer phase meter controls the phase adjustment of each printing unit and die cutting, which is convenient and reliable for operation.

2. All drive rollers are made of high quality steel, hard chrome plated and ground.

3. The main transmission gear is driven by high-precision gear, made of 45 × steel, carburized and quenched

The hardness is 50 to 55 degrees, the strength is high, and the wear-resistant work is stable.

4. Each unit of the whole machine is electrically separated, pneumatically locked and pneumatically locked, which lasts for walking

Ring the alarm to ensure the safety of operators.

5. Key free connection is adopted between gear and transmission shaft to ensure seamless connection between gear and shaft

Chromatic precision.

6. Start the button with both hands of the host to ensure the safety of the operator.

Main Specifications

Model	JCS-ZS-1224
Diameter of printing roller(including the printing plate)	φ405mm
Length of printing roller	2400mm
Design speed	110sheets/min
Working speed	0-90sheets/min
Max. printing size	1200×2400mm
Max. feeding size	1200×2500mm
Min. feeding size	320×600mm
Thickness of the paper	2－11mm
Thickness of wallboard	40mm
Overprint error	≤±0.5mm
Main power	15KW
