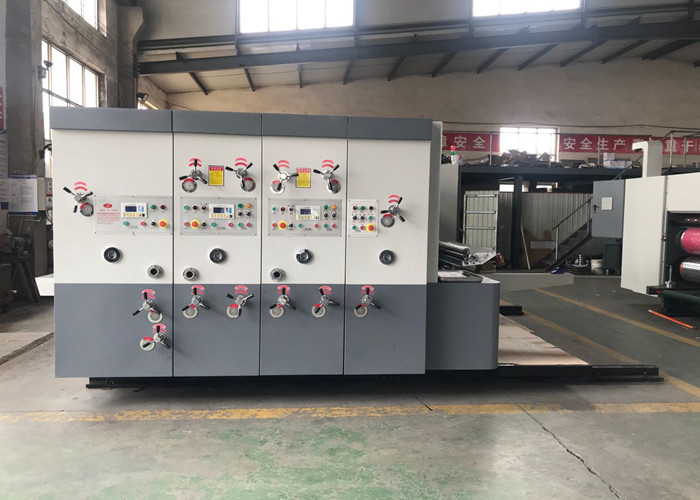

    Electric Printing 405mm Rotary Die Cutting Machine Attached Slotter Function

    Ask Lasest Price
    Brand Name : JCS
    Model Number : JCS-ZS-1224
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Electric Printing 405mm Rotary Die Cutting Machine Attached Slotter Function

    Corrugated Box Electric Type Printing Rotary Die Cutting Machine Attached Slotter Function


    Main Features


    1. The computer phase meter controls the phase adjustment of each printing unit and die cutting, which is convenient and reliable for operation.

    2. All drive rollers are made of high quality steel, hard chrome plated and ground.

    3. The main transmission gear is driven by high-precision gear, made of 45 # steel, carburized and quenched

    The hardness is 50 to 55 degrees, the strength is high, and the wear-resistant work is stable.

    4. Each unit of the whole machine is electrically separated, pneumatically locked and pneumatically locked, which lasts for walking

    5. Ring the alarm to ensure the safety of operators.

    6. The main motor adopts AC frequency conversion speed regulation.

    7. Each unit adopts independent electric control unit, which is safe and reliable.

    8. Indicator light, relay, button, contactor, air switch, etc. adopt Schneider.

    9. The inverter is manufactured by Shenzhen Invt.

    10. PLC and touch screen adopt Taiwan FATEK.


    Main Specifications


    Model

    JCS-ZS-1224
    Diameter of printing roller(including the printing plate)φ405mm
    Length of printing roller2400mm
    Design speed160sheets/min
    Working speed0-140sheets/min
    Max. printing size1200×2400mm
    Max. feeding size1200×2500mm
    Min. feeding size320×600mm
    Thickness of the paper2-11mm
    Thickness of wallboard40mm
    Overprint error≤±0.5mm
    Main power15KW
