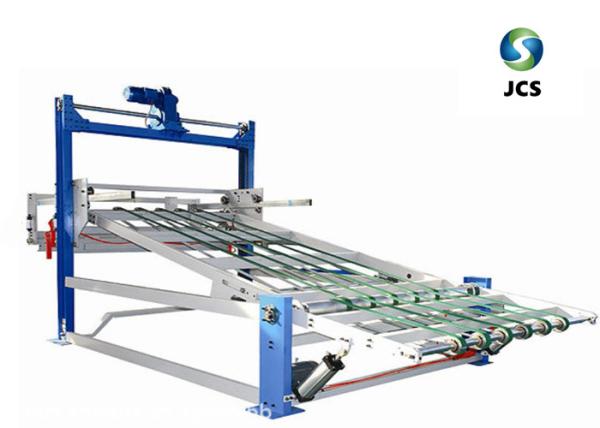

Hydraulic / Mechanical Automatic Stacking Machine

JCS2800 Mechanical Stacking Machine

1. Maximum paper size 2600

2. Maximum paper collection 2100

3. Maximum stacking 1700

4. Maximum speed: 200 pcs/min

5. The paper conveying platform adopts motor lifting mode and PLC controlled lifting mode, which has two operation modes, automatic and manual with high safety.

6. The front end paper receiving part adopts pneumatic lifting mode and has automatic insurance to ensure safety.

7. Domestic famous brands are adopted for main electrical appliances.

8. The belt motor is controlled by a gear motor frequency converter with power of 1.5kw.

9. The lifting motor adopts 2.2kw brake motor.

10. The rear stacking is equipped with pneumatic tapping to make the paper stacking more orderly.

JCS2800 Hyfraulic Stacking Machine

1. Maximum paper size 2600

2. Maximum paper collection 1800

3. Maximum stacking 1700

4. Maximum speed: 200 pcs/min

5. The paper conveying platform adopts hydraulic lifting mode and PLC controlled lifting mode, which has two operation modes, automatic and manual with high safety.

6. The front end paper receiving part adopts pneumatic lifting mode and has automatic insurance to ensure safety.

7. Domestic famous brands are adopted for main electrical appliances.

8. The belt motor is controlled by a gear motor frequency converter with power of 1.5kw.

9. The rear stacking is equipped with pneumatic tapping to make the paper stacking more orderly.
